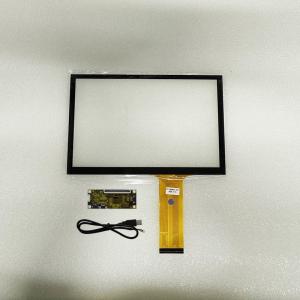

10.1" Narrow Bezel PCAP Touch Screen Overlay with ILITEK Touch Controller ILI2511
Product Description of 10.1" PCAP Touch Screen Overlay:
LBCTP101120-9009V1 is a 10.1-inch projected capacitive touchscreen overlay, which is installed on top of the LCD panel with aspect ratio 16:10 and the resolution is 1920x1200 or 1280x800. The touch controller has standard USB-HID interface, RS232 and IIC for option.
The PCAP Touch Screen product is a cutting-edge technology that offers a versatile and user-friendly touch interface suitable for a wide range of applications. With support for USB, IIC, and RS232 touch interfaces, this product provides seamless connectivity and compatibility with various devices and systems.
Utilizing ITO (Indium Tin Oxide) technology, the touch sensor of the PCAP Touch Screen ensures high sensitivity and accuracy, allowing for precise touch input and smooth operation. This advanced technology enhances the overall user experience by providing a responsive and intuitive touch interface.
When it comes to touch panel technologies, the PCAP Touch Screen stands out with its innovative features and capabilities. Unlike traditional touch panels, such as Surface Acoustic Wave Touch Panel, Infrared Touch Control Panel, or Electromagnetic Touch System, the PCAP Touch Screen offers a modern and efficient touch interface that responds accurately to touch input, providing users with a seamless and engaging interaction experience.
Features of 10.1" PCAP Touch Screen Overlay:
- Product Name: PCAP Touch Screen
- Aspect Ratio: 16:10
- Item: PCAP Touchscreen Overlay
- Touch Interface: USB, IIC, RS232
- Resolution: 1920x1200; 1280x800
- Outline Dimension: 233.53x153.95x2.0mm
Technical Parameters of 10.1" PCAP Touch Screen Overlay:
| Resolution | 1920x1200; 1280x800 |
| Touch Sensor | ITO Technology |
| Transmittance | >86% |
| Layers | Glass On Glass |
| Operating System Support | Windows, Linux, Android |
| Touch Points | 10 Points Finger Touch |
| Cover Glass | Chemically Tempered Glass |
| Size | 10.1 Inches |
| Item | PCAP Touchscreen Overlay |
| Outline Dimension | 233.53x153.95x2.0mm |
Applications:
Product Application Occasions and Scenarios for LB PCAP Touch Screen:
Capacitive Touchscreen Monitor and All-in-one Computer
The LB PCAP Touch Screen, model LBCTP101120-9009V1, is ideal for applications where a high level of accuracy and responsiveness is required, such as interactive kiosks, digital signage, and industrial control panels. The capacitive touch technology provides a smooth and precise touch experience, making it suitable for various professional settings.
